Water Conservancy & Hydropower Industry

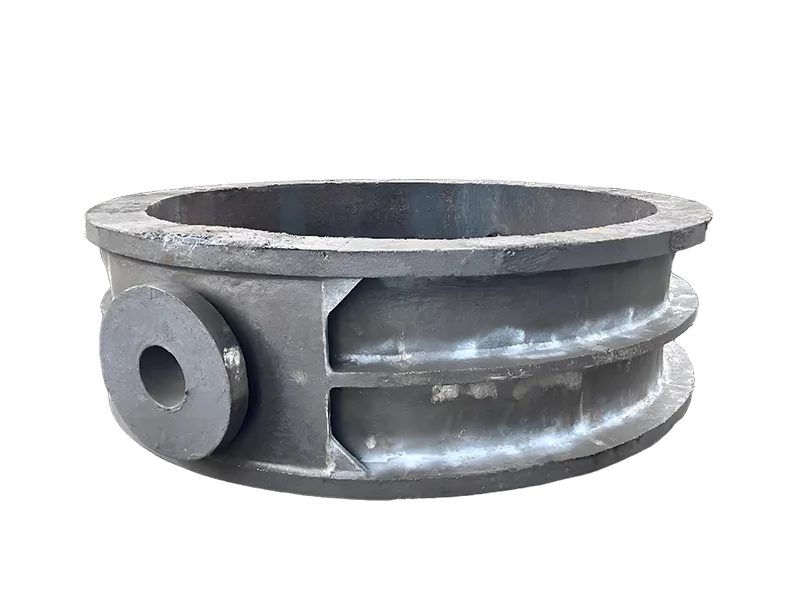

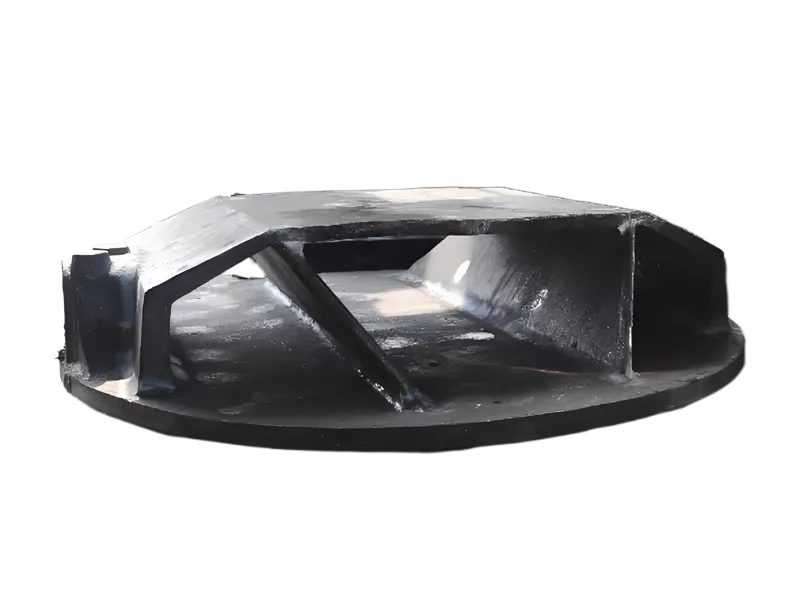

Spherical hinges, valve bodies, butterfly plates, slurry pump casings and gate components for dams, pump stations and hydropower plants. Cast in carbon, low-alloy and stainless steels with hydraulic pressure testing and 100% NDT for water-retaining parts.
Hydropower Castings — Frequently Asked Questions
Corrosion and Cavitation Resistance
Water-conservancy castings fight corrosion, cavitation and silt erosion for decades, often without maintenance access. We pour valve bodies and pump casings in ZG230-450 with protective coatings, or upgrade to martensitic stainless grades (ZG06Cr13Ni4Mo) for runner and cavitation-exposed parts. Hydraulic pressure testing verifies integrity before shipment.
Large Hinges and Gate Components
Radial gate spherical hinges transfer enormous, slowly-cycling loads. Dimensional accuracy of the sphere and its surface finish decide service life — our 4m/5m CNC vertical lathes machine these bearing surfaces in-house to IT8 precision, with blue-contact verification on mating pairs.
How do you prevent internal defects like blowholes, sand inclusions, and cracks in large steel castings?
We eliminate internal defects through a multi-stage control system. First, we use Ladle Furnace (LF) refining to degas and purify the molten steel, strictly limiting sulfur and phosphorus levels. Second, we optimize the gating system using casting simulation software. Finally, every critical area undergoes 100% Non-Destructive Testing (NDT), including Ultrasonic (UT) and Magnetic Particle (MT) testing, ensuring zero critical defects before shipment.
What in-house Non-Destructive Testing (NDT) capabilities do you have?
Our in-house NDT laboratory is fully equipped and certified. We perform Ultrasonic Testing (UT), Magnetic Particle Testing (MT), and Liquid Penetrant Testing (PT). For special requirements, Radiographic Testing (RT) can also be arranged. All our NDT inspectors hold international certifications (Level II or Level III) to guarantee inspection accuracy.
How do you guarantee the stability and consistency of mechanical properties across different batches?
Consistency comes from standardized heat treatment and digital microstructural analysis. We utilize large, computer-controlled natural gas heat treatment furnaces to perform precise annealing, normalizing, and tempering. Every heat code is tracked, and samples from the same pouring batch are tested for tensile strength, yield strength, impact toughness, and hardness to ensure they perfectly match your specifications.
Can you provide full material traceability and Material Test Reports (MTR)?
Absolutely. Every casting is stamped with a unique Heat Number for lifetime traceability. With each shipment, we deliver a comprehensive document package including Material Test Reports (MTR) complying with EN 10204 3.1, chemical analysis reports (via direct-reading spectrometer), mechanical testing data, and NDT clearance certificates.
What is your typical lead time for a custom heavy steel casting like a slag pot or girth gear?
For large customized castings, the lead time generally ranges from 45 to 75 days, depending on the geometric complexity, pattern-making requirements, and the level of final machining needed. Once the engineering drawings are approved, we provide a detailed project timeline and send weekly progress photos/videos to keep you updated.
Can you manufacture castings that strictly comply with our local standards (e.g., ASTM, DIN, EN, JIS)?
Yes. We are highly experienced in international standard conversions. Whether your project specifies American standards (ASTM A27, ASTM A148), European standards (EN 10213, DIN GS-20Mn5), or Japanese standards (JIS G5101), our metallurgical engineers will configure the exact chemical composition and heat treatment parameters to meet or exceed those requirements.
Want a Custom Hydropower Casting? Talk to Our Engineers.
We supply project-certified castings with full material traceability and third-party inspection (SGS/BV/TÜV) on request.
- Engineering reply within 24 hours
- NDA before you send drawings, on request
- ASTM · EN · DIN · JIS standards supported
